Oil

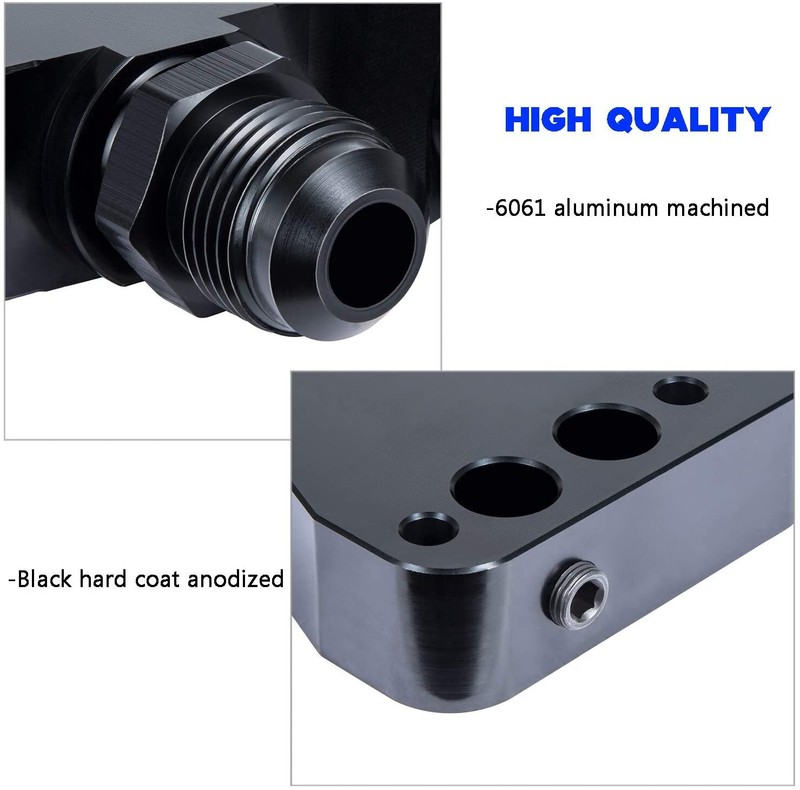

Fit for F or Corvette C5 1997-2004, Corvettes C6 2005-2013, Corvettes C7 2014-2019, Cadillac CTS-V 2004-2006, LS1 Camaro & Firebird 1998-2002, 4.8L, 5.3L, 6.0L & 6.2L GM CK 1999-2007 trucks. This Oil Cooler Adapter Kit is for GM LS1 / LS2 / LS3 / LS6 / LS7 / LS9 Gen IV Engines. (Attention: Do NOT fit 2004-2006 Pontiac GTO) Function Helps to reduce oil pressure drop while retaining the factory oil filter location. This oil cooler adapter block kit gives you a simple easy way for plumbing an oil cooler to your engine.The gasket and bolts are included for installation. Features: This oil cooler adapter kit is the slick way to add an oil cooler for GM LS or Gen-V LT engine. There are 10 fitting for the oil inlet/outlets as well as a port for the oil temperature sensor and oil feed line. The oil exiting the adapter is filtered oil and the oil feed port for accessories is oil returning from the cooler. The mounting holes are counter-bored so the mounting bolts fit flush with the adapter surface for maximum clearance with a reliable seal. Bolt-on in place of the factory oil bypass cover, just above the oil filter. Low-profile design provides more header clearance than any other oil cooler adapter on the market. Two 1/8" NPT ports for sensors or turbo oil supply line. Ideal for Engine Swaps & High Heat Applications. Note: The oil cooler adapter is after the factory pan mounted oil filter in the production oil circuit so oil going out to the oil cooler is filtered oil. This oil cooler adapter is designed to be used with an external oil cooler. If you are not using an external oil cooler LPE offers an adapter block kit with oil supply and sensor fittings that does not have the external oil cooler lines (LPE part#L300015297). Warning: You can’t plug the -10 oil lines on this adapter and run the engine. This adapter does not have an internal bypass passage inside of it. You must connect the -10 lines to an oil cooler or loop the lines back to the other port on the adapter or your engine will not have proper oil pressure and will be damaged. Installation Instructions: Clean the block mounting surface area and then install the supplied gasket and oil cooler adapter block. Install the oil cooler adapter bolts and tighten the bolts. Use thread sealing compound on the sensor or sensor plug threads along with the adapter block bolt threads. If you are using this adapter on a vehicle that doesn’t have an oil temperature sensor or has the sensor mounted elsewhere, then you should plug the oil temperature sensor port with the supplied M12 plug and crush washer. If you are not using this adapter to supply oil to a turbocharger, supercharger or other application then you should plug the 1/8” NPT port with the supplied fitting. The oil temperature sensor port plug can be used to add an oil temperature sensor to vehicles that don’t already have an oil temperature sensor and gauge. The temperature reading at this location will be the engine out (pre-oil cooler) temperature. Package Includes: Engine Oil Cooler Adapter Kit Payment Shipping policy Terms of sales About us Contact us Payment We accept PayPal, MasterCard, Visa, American Express, Discover and etc payment. Shipping policy Orders will be ship out within 1 business days.Orders from Saturdays, Sundays or holidays will process on next business day and will be ship within 24 hours. All of the items are shipped from our Warehouse in USA via USPS, UPS,Every package has tracking number.It will take about 2 to 5 business days to you. Terms of sales If you're not 100% satisfied with our items, simply return it for a full refund in 60 days. Support 24 months’ Warranty. Professional & Sincere Service allows you to take no risks to purchase in our store! About us Premium Quality Tool , Qualified by ISO manufacturing process.We only provide customers with best product and best price. Thank you so much for re-ordering and purchasing our product. Support from long-time customers like you helps our business grow and evolve thanks to your helpful feedback. Any question, please don’t hesitate to let me know. Contact us Once your enquiry is received,we will reply within 24 business hours.

Returns Accepted for this item if it's within 60 Days
